Compare Cubiscan Models

CUBISCAN 25

CS-25-angled-left-system-only-lower-angle 1

Designed to measure boxed products and packages

PHYSICAL SPECIFICATIONS

Length	810mm
Width	690mm
Height	580mm
Weight	28kg

PERFORMANCE SPECIFICATION

Measurement Range
Length	2mm - 450mm
Width	2mm - 300mm
Height	2mm - 300mm
Meausurement Increment	1mm
Weight Capacity	2g to 6kg
Weight Increment	2g

OTHER

Measuring Sensor	Infrared Light Beam
Weight Sensor	Load Cell
Operating Temperature	0'-40' C (32 '-104' F)
Humidity	0-90% non condensing
Mobile Option	Yes

CUBISCAN 100

Designed to measure boxed products and packages

PHYSICAL SPECIFICATIONS

Length	810mm
Width	810mm
Height	1210mm
Weight	32kg

PERFORMANCE SPECIFICATION

Measurement Range
Length	10mm - 610mm
Width	10mm - 610mm
Height	10mm - 900mm
Meausurement Increment	2mm
Weight Capacity	50kg
Weight Increment	20g

OTHER

Measuring Sensor	Ultrasonic
Weight Sensor	Load Cell
Operating Temperature	5'-40' C (40'-104' F)
Humidity	0-90% non condensing
Mobile Option	Yes

CUBISCAN 110

Designed to measure boxed products and packages

PHYSICAL SPECIFICATIONS

Length	1230mm
Width	820mm
Height	980mm
Weight	30kg

PERFORMANCE SPECIFICATION

Measurement Range
Length	10mm - 900mm
Width	10mm - 600mm
Height	10mm - 750mm
Meausurement Increment	2mm
Weight Capacity	50kg
Weight Increment	20g

OTHER

Measuring Sensor	Ultrasonic
Weight Sensor	Load Cell
Operating Temperature	5'-40' C (40'-104' F)
Humidity	0-90% non condensing
Mobile Option	Yes

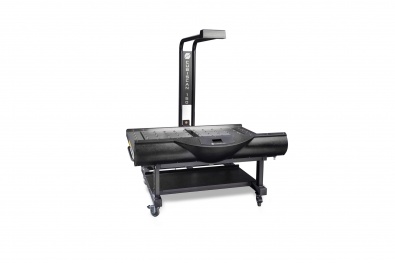

CUBISCAN 150

CS-150-angled-right-system-only-different-angle-scaled

Designed to measure boxed products and packages

PHYSICAL SPECIFICATIONS

Length	1650mm
Width	1320mm
Height	1930mm
Weight	195kg

PERFORMANCE SPECIFICATION

Measurement Range
Length	80mm - 1200mm
Width	60mm - 1000mm
Height	60mm - 1000mm
Meausurement Increment	2mm
Weight Capacity	70kg
Weight Increment	20g

OTHER

Measuring Sensor	Ultrasonic
Weight Sensor	Load Cell
Operating Temperature	5'-40' C (40'-104' F)
Humidity	0-90% non condensing
Mobile Option	No

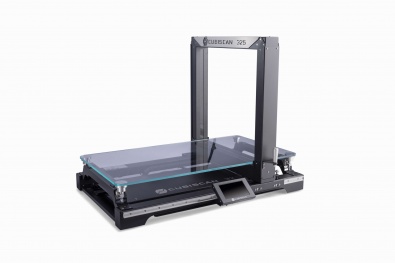

CUBISCAN 325

Designed to measure and weigh both boxed and unusually shapped objects

PHYSICAL SPECIFICATIONS

Length	1250mm
Width	970mm
Height	970mm
Weight	78.5kg

PERFORMANCE SPECIFICATIONS

Measurement Range
Length	2mm - 900mm
Width	2mm - 600mm
Height	2mm - 600mm
Measurement Increment	1mm
Measurement Time	<5
Weight Capacity	2g - 25kg
Weight Increment	2g

OTHER

Measuring Sensor	Infrared light beam
Weight Sensor	Four load cells
Operating Temperature	0° - 40° C
Humidity	0-90%, non condensing
Mobile Option	Yes

CUBISCAN 1200-AKL

Designed to measure boxed products and packages

PHYSICAL SPECIFICATIONS

Length	4600mm
Width	3300mm
Height	3400mm

PERFORMANCE SPECIFICATION

Measurement Range
Length	200mm - 2500mm
Width	200mm - 2500mm
Height	100mm - 2500mm
Meausurement Increment
Length & Width	20mm
Height	10mm

OTHER

Measuring Sensor	2 x Infrared laser scanners
Weight Sensor	N/A
Operating Temperature	5'-40' C (40'-104' F)
Humidity	0-90% non condensing
Mobile Option	No
